Polaris 8.88mm 144x324 Single Sided Full Color LED Display
View this model as a
complete sign.
| LED Display Specifications | |
|---|---|
| Color: | Full Color |
| Pixel Pitch: | 8.88mm (0.35") |
| Matrix - pixel height: | 144 |
| Matrix - pixel width: | 324 |
| Sides: | Single Sided |
| Controller: | Industrial PC |
| Total pixels: | 46,656 |
| Total LEDs: | 46,656 |
| Brightness: | Up to 10,000 nits |
| Horizontal/vertical viewing angle: | 140/70 |
| Software: | SignCommand.com |
| Frames per second: | 60 |
| Auto or manual dimming: | Included |

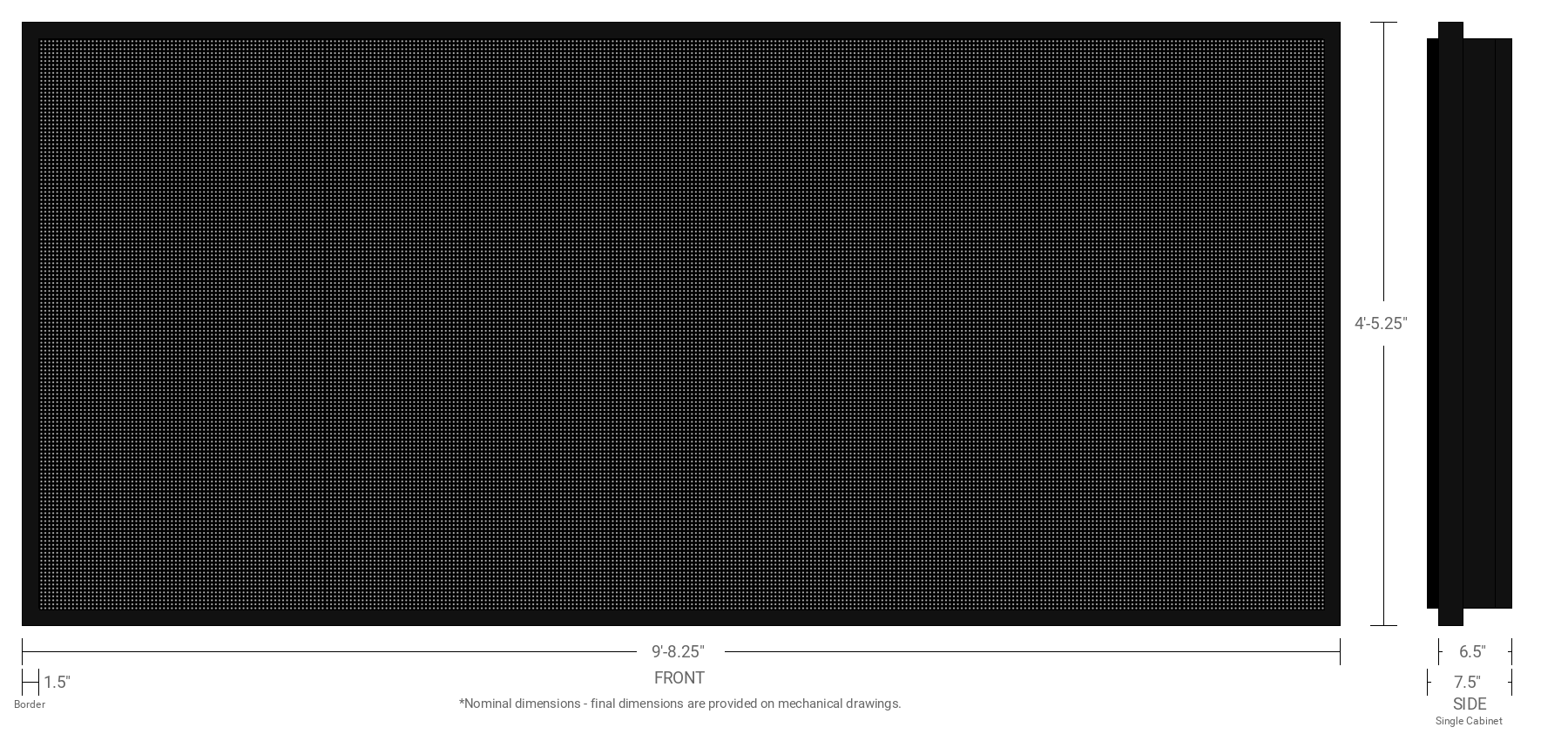

| LED Display Dimensions | |
|---|---|
| Nominal dimensions - final dimensions are provided on mechanical drawings. | |
| Active display height: | 4'-2.25" (50.25") |
| Active display width: | 9'-5.25" (113.25") |
| Active display sq.ft.: | 39.5 sq.ft. |
| Matching Complete Sign |
|---|
| For applications with a combined LED display and identification area, we recommend the following complete sign. |
| Complete Polaris 8.88mm 144x324 Single Sided Full Color LED Display with 3' x 10' ID Cabinet & Digital Print Pan Formed Face |
| Matching Identification Cabinet |
|---|
| For applications with a separate LED display and identification area, we recommend the following sized ID cabinet. |
| 3' x 10' Single Sided Aluminum Sign Cabinet with 12" Extrusion |
| Electrical Requirements (Estimated) | |
|---|---|
| Circuit: | 1 circuit at 20 amps |
| Voltage: | 240 volts |
| LED Display Electrical Use (Estimated) | |
|---|---|
| Typical use (daytime): | 1,639 watts |
| Typical use (nighttime): | 328 watts |
| Maximum use: | 3,277 watts |
| Max draw: | 14 amps |
| Operating cost is approximately $86 per month , assuming the average of daytime and nighttime use and a price of $0.12 per kWh. | |
| LED Communication Methods |
|---|
| Cell Connect (optional) |
| Wi-Fi via Radio Frequency Modems (optional) |
| Ethernet Cable (standard) |
| LED Module Specifications | |
|---|---|
| Pixel size: | 36 x 36 pixels |
| Physical size: | 320mm x 320mm |
| LEDs per pixel: | 1 SMD |
| Text Capabilities |
|---|
| 18 rows of 2.4" text |
| 14 rows of 3.1" text |
| 13 rows of 3.5" text |
| 9 rows of 4.5" text |
| 8 rows of 6.3" text * |
| 7 rows of 7.2" text * |
| 6 rows of 8.4" text * |
| 5 rows of 10.1" text * |
| 4 rows of 12.6" text * |
| 3 rows of 16.8" text * |
| 2 rows of 25.2" text * |
| 1 row of 50.3" text * |
| * Using regular text. |
| Supported Formats |
|---|
| AVI, BMP, GIF, JPG, MOV, MP4, MPG, PNG, TIF, WMV |
