Polaris 20mm 24x80 Single Sided Grayscale Red LED Display
View this model as a
complete sign.
| LED Display Specifications | |
|---|---|
| Color: | Grayscale Red |
| Pixel Pitch: | 20mm (0.79") |
| Matrix - pixel height: | 24 |
| Matrix - pixel width: | 80 |
| Sides: | Single Sided |
| Controller: | Industrial PC |
| Total pixels: | 1,920 |
| Total LEDs: | 3,840 |
| Brightness: | Up to 10,000 nits |
| Horizontal/vertical viewing angle: | 140/70 |
| Software: | SignCommand.com |
| Frames per second: | 30 |
| Auto or manual dimming: | Included |

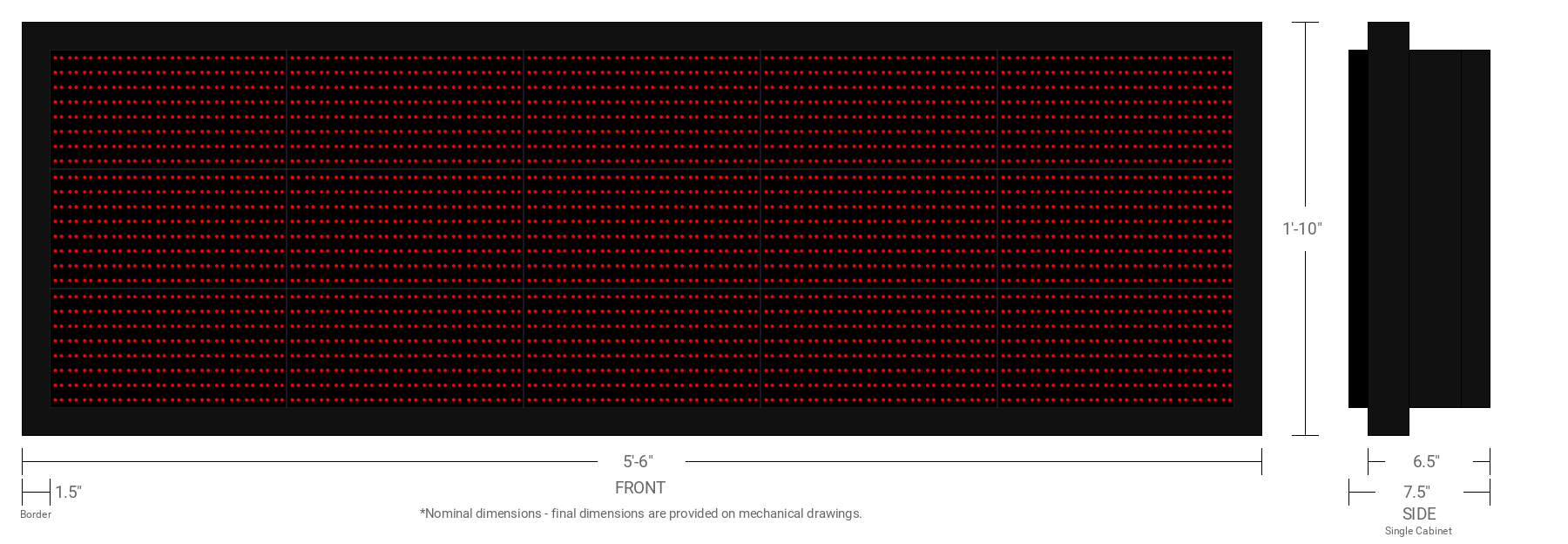

| LED Display Dimensions | |
|---|---|
| Nominal dimensions - final dimensions are provided on mechanical drawings. | |
| Active display height: | 1'-7" (19") |
| Active display width: | 5'-3" (63") |
| Active display sq.ft.: | 8.3 sq.ft. |
| Matching Complete Sign |
|---|
| For applications with a combined LED display and identification area, we recommend the following complete sign. |
| Complete Polaris 20mm 24x80 Single Sided Grayscale Red LED Display with 2' x 6' ID Cabinet & Digital Print Pan Formed Face |
| Matching Identification Cabinet |
|---|
| For applications with a separate LED display and identification area, we recommend the following sized ID cabinet. |
| 2' x 6' Single Sided Aluminum Sign Cabinet with 12" Extrusion |
| Electrical Requirements (Estimated) | |
|---|---|
| Circuit: | 1 circuit at 20 amps |
| Voltage: | 120 volts |
| LED Display Electrical Use (Estimated) | |
|---|---|
| Typical use (daytime): | 88 watts |
| Typical use (nighttime): | 18 watts |
| Maximum use: | 177 watts |
| Max draw: | 2 amps |
| Operating cost is approximately $5 per month , assuming the average of daytime and nighttime use and a price of $0.12 per kWh. | |
| LED Communication Methods |
|---|
| Cell Connect (optional) |
| Wi-Fi via Radio Frequency Modems (optional) |
| Ethernet Cable (standard) |
| LED Module Specifications | |
|---|---|
| Pixel size: | 8 x 16 pixels |
| Physical size: | 160mm x 320mm |
| LEDs per pixel: | 2 red per pixel |
| Text Capabilities |
|---|
| 3 rows of 5.5" text |
| 2 rows of 7.1" text |
| 2 rows of 7.9" text |
| 1 row of 10.2" text |
| 1 row of 18.9" text * |
| * Using regular text. |
| Supported Formats |
|---|
| AVI, BMP, GIF, JPG, MOV, MP4, MPG, PNG, TIF, WMV |
