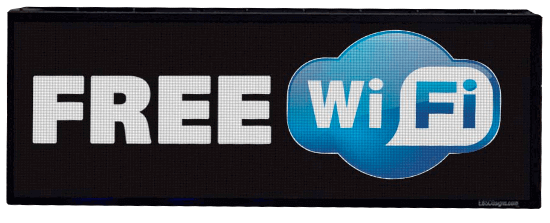

Polaris LED Displays
Get a powerful LED sign at a great price! Empower your customers by enabling them to show any combination of video, graphics and text with a state-of-the-art outdoor electronic message center from Stewart Signs Wholesale!
Our Polaris model electronic message centers have many of the same features as our Aurora model signs, but at a lower cost. These core-capability displays offer an exceptional value to your customers.
Available in full color or shaded red (16mm and 20mm only), this option is a more cost effective solution and perfect for budget-conscious projects. All cabinets are front-serviceable via a hinged cabinet. Three pixel pitches are available to suit your particular application. See our LED Sign Comparison for more information.
Check out our product videos!
Sizes
Our LED signs are available in a wide variety of sizes to suit your specific needs. Choose from a single-sided or double-sided application. All measurements shown are approximations; dimensions of final product may vary.
Recommended Viewing Distance of 35'+ |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Active Display Width | ||||||||||
| 3'-1.75" | 4'-2.5" | 5'-3" | 6'-3.5" | 7'-4.25" | 8'-4.75" | 9'-5.5" | 10'-6" | 11'-6.5" | ||
| Active Display Height |
1'-0.5" | 8mm 40x200 SS | 8mm 40x240 SS | 8mm 40x280 SS | 8mm 40x320 SS | 8mm 40x360 SS | 8mm 40x400 SS | 8mm 40x440 SS | ||
| 2'-1.25" | 8mm 80x120 SS | 8mm 80x160 SS | 8mm 80x200 SS | 8mm 80x240 SS | 8mm 80x280 SS | 8mm 80x320 SS | 8mm 80x360 SS | 8mm 80x400 SS | 8mm 80x440 SS | |
| 3'-1.75" | 8mm 120x120 SS | 8mm 120x160 SS | 8mm 120x200 SS | 8mm 120x240 SS | 8mm 120x280 SS | 8mm 120x320 SS | 8mm 120x360 SS | 8mm 120x400 SS | 8mm 120x440 SS | |
| 4'-2.5" | 8mm 160x120 SS | 8mm 160x160 SS | 8mm 160x200 SS | 8mm 160x240 SS | 8mm 160x280 SS | 8mm 160x320 SS | 8mm 160x360 SS | 8mm 160x400 SS | 8mm 160x440 SS | |
Recommended Viewing Distance of 35'+ |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Active Display Width | ||||||||||
| 3'-1.75" | 4'-2.5" | 5'-3" | 6'-3.5" | 7'-4.25" | 8'-4.75" | 9'-5.5" | 10'-6" | 11'-6.5" | ||
| Active Display Height |
1'-0.5" | 8mm 40x200 DS | 8mm 40x240 DS | 8mm 40x280 DS | 8mm 40x320 DS | 8mm 40x360 DS | 8mm 40x400 DS | 8mm 40x440 DS | ||
| 2'-1.25" | 8mm 80x120 DS | 8mm 80x160 DS | 8mm 80x200 DS | 8mm 80x240 DS | 8mm 80x280 DS | 8mm 80x320 DS | 8mm 80x360 DS | 8mm 80x400 DS | 8mm 80x440 DS | |
| 3'-1.75" | 8mm 120x120 DS | 8mm 120x160 DS | 8mm 120x200 DS | 8mm 120x240 DS | 8mm 120x280 DS | 8mm 120x320 DS | 8mm 120x360 DS | 8mm 120x400 DS | 8mm 120x440 DS | |
| 4'-2.5" | 8mm 160x120 DS | 8mm 160x160 DS | 8mm 160x200 DS | 8mm 160x240 DS | 8mm 160x280 DS | 8mm 160x320 DS | 8mm 160x360 DS | 8mm 160x400 DS | 8mm 160x440 DS | |
Recommended Viewing Distance of 35'+ |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Active Display Width | ||||||||||
| 3'-1.75" | 4'-2.5" | 5'-3" | 6'-3.5" | 7'-4.25" | 8'-4.75" | 9'-5.5" | 10'-6" | 11'-6.5" | ||
| Active Display Height |
1'-0.5" | 10mm 32x160 SS | 10mm 32x192 SS | 10mm 32x224 SS | 10mm 32x256 SS | 10mm 32x288 SS | 10mm 32x320 SS | 10mm 32x352 SS | ||
| 2'-1.25" | 10mm 64x96 SS | 10mm 64x128 SS | 10mm 64x160 SS | 10mm 64x192 SS | 10mm 64x224 SS | 10mm 64x256 SS | 10mm 64x288 SS | 10mm 64x320 SS | 10mm 64x352 SS | |
| 3'-1.75" | 10mm 96x96 SS | 10mm 96x128 SS | 10mm 96x160 SS | 10mm 96x192 SS | 10mm 96x224 SS | 10mm 96x256 SS | 10mm 96x288 SS | 10mm 96x320 SS | 10mm 96x352 SS | |
| 4'-2.5" | 10mm 128x96 SS | 10mm 128x128 SS | 10mm 128x160 SS | 10mm 128x192 SS | * 10mm 128x224 SS | 10mm 128x256 SS | 10mm 128x288 SS | 10mm 128x320 SS | 10mm 128x352 SS | |
Recommended Viewing Distance of 35'+ |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Active Display Width | ||||||||||
| 3'-1.75" | 4'-2.5" | 5'-3" | 6'-3.5" | 7'-4.25" | 8'-4.75" | 9'-5.5" | 10'-6" | 11'-6.5" | ||
| Active Display Height |
1'-0.5" | 10mm 32x160 DS | 10mm 32x192 DS | 10mm 32x224 DS | 10mm 32x256 DS | 10mm 32x288 DS | 10mm 32x320 DS | 10mm 32x352 DS | ||
| 2'-1.25" | 10mm 64x96 DS | 10mm 64x128 DS | 10mm 64x160 DS | 10mm 64x192 DS | 10mm 64x224 DS | 10mm 64x256 DS | 10mm 64x288 DS | 10mm 64x320 DS | 10mm 64x352 DS | |
| 3'-1.75" | 10mm 96x96 DS | 10mm 96x128 DS | 10mm 96x160 DS | 10mm 96x192 DS | 10mm 96x224 DS | 10mm 96x256 DS | 10mm 96x288 DS | 10mm 96x320 DS | 10mm 96x352 DS | |
| 4'-2.5" | 10mm 128x96 DS | 10mm 128x128 DS | 10mm 128x160 DS | 10mm 128x192 DS | * 10mm 128x224 DS | 10mm 128x256 DS | 10mm 128x288 DS | 10mm 128x320 DS | 10mm 128x352 DS | |
Recommended Viewing Distance of 40'+ |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Active Display Width | ||||||||||
| 3'-1.75" | 4'-2.5" | 5'-3" | 6'-3.5" | 7'-4.25" | 8'-4.75" | 9'-5.5" | 10'-6" | 11'-6.5" | ||
| Active Display Height |
1'-0.5" | 16mm 20x100 SS | 16mm 20x120 SS | 16mm 20x140 SS | 16mm 20x160 SS | 16mm 20x180 SS | 16mm 20x200 SS | 16mm 20x220 SS | ||
| 2'-1.25" | 16mm 40x60 SS | 16mm 40x80 SS | 16mm 40x100 SS | 16mm 40x120 SS | 16mm 40x140 SS | 16mm 40x160 SS | 16mm 40x180 SS | 16mm 40x200 SS | 16mm 40x220 SS | |
| 3'-1.75" | 16mm 60x60 SS | 16mm 60x80 SS | 16mm 60x100 SS | 16mm 60x120 SS | 16mm 60x140 SS | 16mm 60x160 SS | 16mm 60x180 SS | 16mm 60x200 SS | 16mm 60x220 SS | |
| 4'-2.5" | 16mm 80x60 SS | 16mm 80x80 SS | 16mm 80x100 SS | 16mm 80x120 SS | * 16mm 80x140 SS | 16mm 80x160 SS | 16mm 80x180 SS | 16mm 80x200 SS | 16mm 80x220 SS | |
Recommended Viewing Distance of 40'+ |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Active Display Width | ||||||||||
| 3'-1.75" | 4'-2.5" | 5'-3" | 6'-3.5" | 7'-4.25" | 8'-4.75" | 9'-5.5" | 10'-6" | 11'-6.5" | ||
| Active Display Height |
1'-0.5" | 16mm 20x100 DS | 16mm 20x120 DS | 16mm 20x140 DS | 16mm 20x160 DS | 16mm 20x180 DS | 16mm 20x200 DS | 16mm 20x220 DS | ||
| 2'-1.25" | 16mm 40x60 DS | 16mm 40x80 DS | 16mm 40x100 DS | 16mm 40x120 DS | 16mm 40x140 DS | 16mm 40x160 DS | 16mm 40x180 DS | 16mm 40x200 DS | 16mm 40x220 DS | |
| 3'-1.75" | 16mm 60x60 DS | 16mm 60x80 DS | 16mm 60x100 DS | 16mm 60x120 DS | 16mm 60x140 DS | 16mm 60x160 DS | 16mm 60x180 DS | 16mm 60x200 DS | 16mm 60x220 DS | |
| 4'-2.5" | 16mm 80x60 DS | 16mm 80x80 DS | 16mm 80x100 DS | 16mm 80x120 DS | * 16mm 80x140 DS | 16mm 80x160 DS | 16mm 80x180 DS | 16mm 80x200 DS | 16mm 80x220 DS | |
* Size shown in video above.
Features
Powerful Controllers
We use state-of-the-art industrial PC controllers for exceptional performance and rock-solid dependability. These units feature a 32GB solid state drive (SSD) with the ability to store years worth of messages, media and scheduling information. A powerful Intel™ processor and video output keep your display showing at a smooth 60 frames per second.
Universal Modules
Have the power to upgrade at a later date! Most displays feature a standard 320mm x 320mm LED board that can be changed, along with power supplies, at any point in the future. Our modules also feature a conformal coating that protects the electronics from moisture, dust and introduced chemicals. Built-in louvres provide extra contrast in direct-sunlight environments.
High Performance Cabinets
Our UL Listed, all aluminum LED cabinets will protect the internal components in even the harshest of conditions. With an IP65 weather rating, there's no need to worry about water or chemical intrusion. An exterior paint finish provides chip, impact and fade resistance.
Advanced Scheduling
Scheduling software allows the display to show messages on certain days and times. Messages can be programmed down to the second and over a year in advance. Leverage the power of targeted messaging!. All messages and schedules are stored onboard the sign, preventing computer and power problems from affecting the display.
Video & Graphics Capabilities
In addition to text, displays can show custom video clips, animations and still images. A wide variety of media formats can be imported and used in the software. Attract even more attention with an array of special effects for transitioning frames on and off the display. Create interest and movement designed to draw the eye to the message!

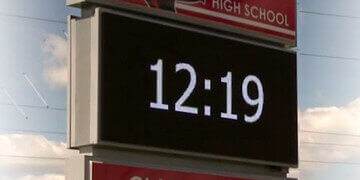

Time & Temperature Support
Serve the community while delivering a message! The current time, date and temperature can be displayed at any point and embedded within the custom text and graphics. Temperature is derived from a reliable and accurate online weather service. Time and date are derived from the internal clock with battery, and do not have to be reset in the event of a power-outage.
Adjustable Brightness
Users can tailor the display to the light levels and unique circumstances of their location. The integrated light meter will adjust the display brightness automatically to ambient light conditions. Never worry about your display being too bright or too dim! If using the manual setting, different brightness levels can be set for daytime and nighttime use. The display can even be set to turn off and back on at certain times.
Comprehensive Support
Stewart Signs Wholesale offers a United States-based support team available during normal business hours. All team members are extensively trained in the construction, installation, maintenance and troubleshooting of LED signs and software at our Alabama facility. We also offer comprehensive product documentation, hardware videos and software tutorials available at any time in our Support site.Options
Communication Methods
We offer several different options for communicating with the sign.
Learn more at our Communication Methods page.
Cell Connect
Using a wireless data modem that is pre-installed inside the LED display, a cellular network connection is used to transfer data with no setup required. Uses our 5-year Cell Connect data plan on the Verizon Wireless 4G LTE network.
Range: Virtually unlimited.
Wi-Fi via Radio Frequency Modems
Using a pair of wireless radios, an RF signal is used to transfer data. One radio is pre-installed inside the sign, and the other on the outside of the building. This radio is then connected to the internet router or network device via an Ethernet cable.
Range: Up to 1500 feet between wireless devices.
Ethernet Cable
Using a Cat5e or Cat6 Ethernet cable, a network connection is used to transfer data. One end is connected to the sign, the other to the internet router or network device. This method is standard for all Aurora and Polaris displays.
Range: Up to 330 feet of cable.

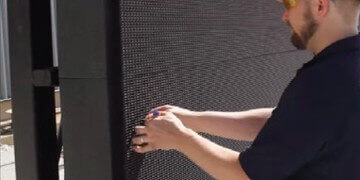

Variable Border
Need an LED cabinet to match an exact size? No problem! Our variable border system allows us to build our LED sign cabinets to any size specification. We can even remove the border entirely for a borderless presentation.
Labor Service Agreement
We are also proud to offer an optional labor service agreement for service at the sign site. For a small percentage increase in the price of the sign, customers are fully covered in the event that service is required. Agreements are available in 5-year terms.

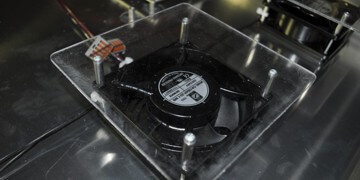

Temperature Controlled Fans
Thermostatically-controlled fans run only when required to prolong their life and decrease maintenance costs. Prevents moisture from entering the sign cabinet when precipitation makes air circulation unnecessary.
Software

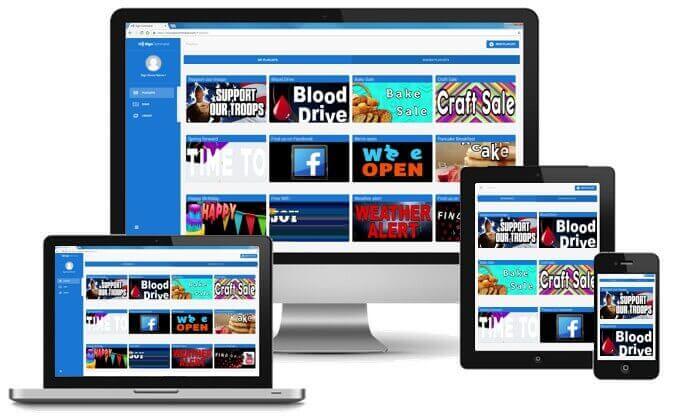

Cloud-based LED Sign Software
Get the power of the cloud with SignCommand.com! Developed by us, this browser-based application lets your customers easily and quickly update their message from any device. Software built with sign dealers in mind, we take the pain out of the most complex parts of LED sign setup.

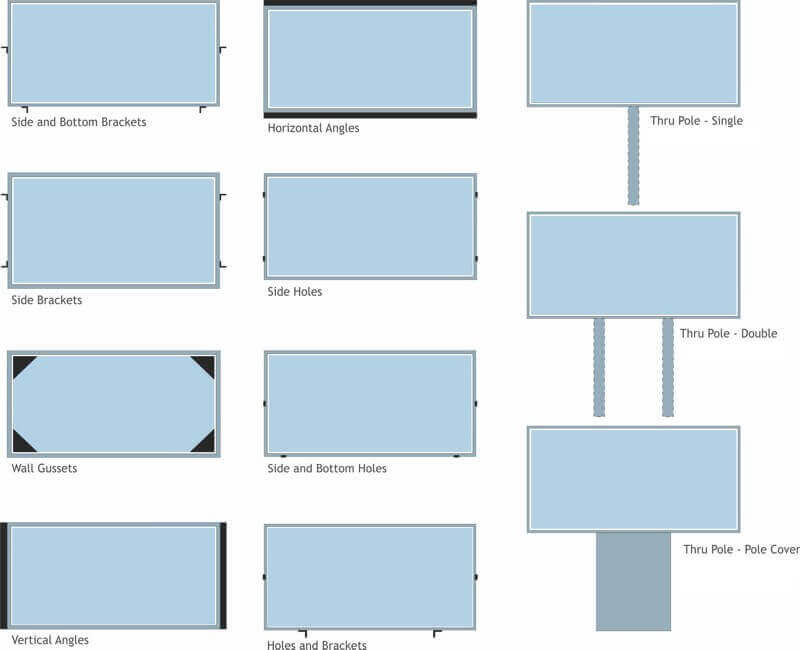

Installation
We offer several different options for installing the sign.
Learn more at our Installation Methods page.
Warranty
Because our products are built to exacting standards with quality components, Stewart Signs Wholesale can offer one of the most competitive and complete warranties in the business. We are pleased to offer a 5 year limited product warranty for these products. Our full warranty information is available online.
Pricing
We are committed to providing our dealers with the best products, tools and support in the industry.
Click "Find a Dealer" to inquire about purchasing a product for your own organization's use.
