Aurora 8mm 200x200 Double Sided Full Color LED Display
View this model as a
complete sign.
| LED Display Specifications | |
|---|---|
| Color: | Full Color |
| Pixel Pitch: | 8mm (0.31") |
| Matrix - pixel height: | 200 |
| Matrix - pixel width: | 200 |
| Sides: | Double Sided |
| Controller: | Industrial PC |
| Total pixels: | 80,000 |
| Total LEDs: | 80,000 |
| Brightness: | Up to 10,000 nits |
| Horizontal/vertical viewing angle: | 140/70 |
| Software: | SignCommand.com |
| Frames per second: | 60 |
| Auto or manual dimming: | Included |
| LED Display Dimensions | |
|---|---|

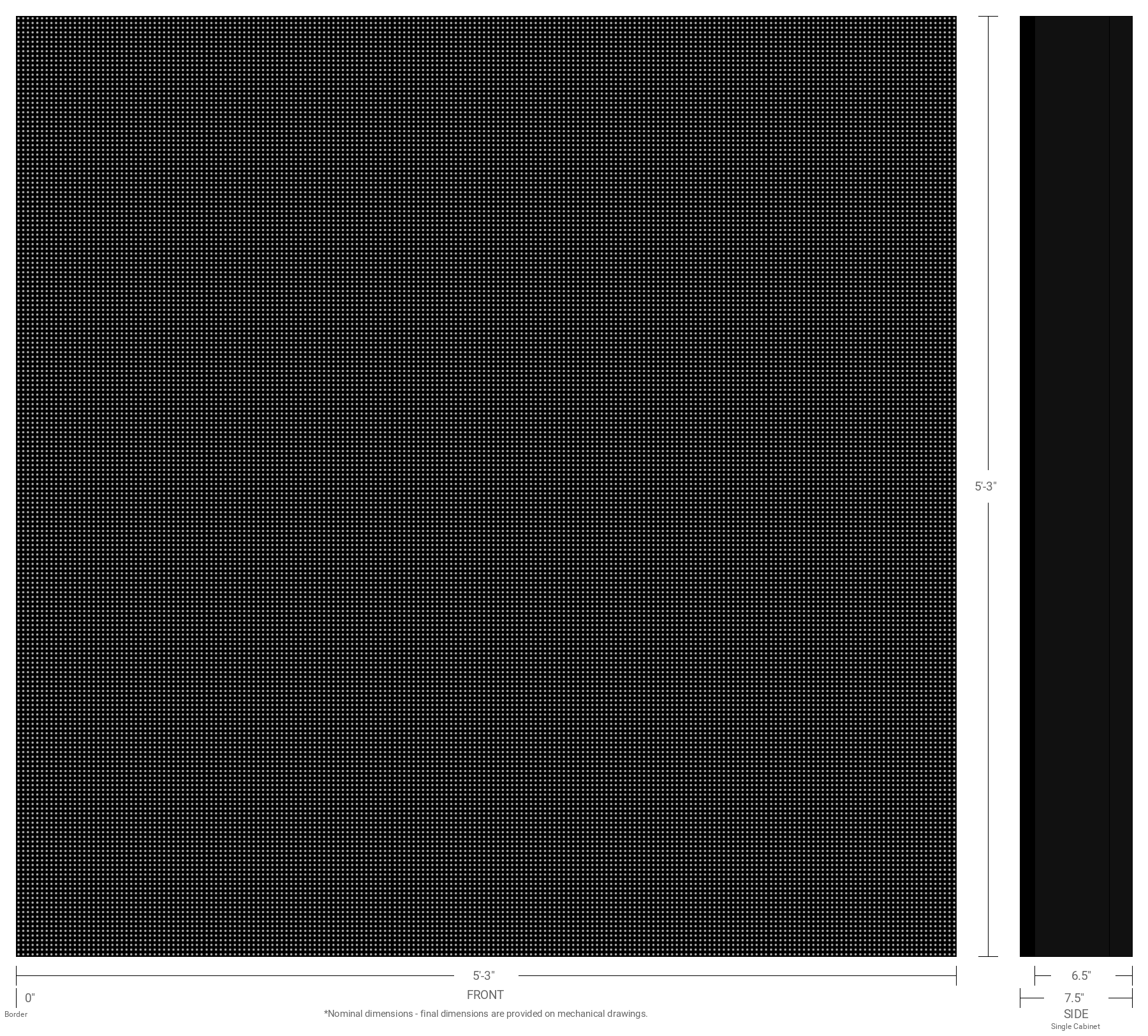

| Nominal dimensions - final dimensions are provided on mechanical drawings. | |
| Active display height: | 5'-3" (63") |
| Active display width: | 5'-3" (63") |
| Active display sq.ft.: | 27.6 sq.ft. per side |
| Matching Complete Sign |
|---|
| For applications with a combined LED display and identification area, we recommend the following complete sign. |
| Complete Aurora 8mm 200x200 Double Sided Full Color LED Display with 3' x 6' ID Cabinet & Digital Print Pan Formed Faces |
| Matching Identification Cabinet |
|---|
| For applications with a separate LED display and identification area, we recommend the following sized ID cabinet. |
| 3' x 6' Double Sided Aluminum Sign Cabinet with 12" Extrusion |
| Electrical Requirements (Estimated) | |
|---|---|
| Circuit: | 1 circuit at 20 amps |
| Voltage: | 240 volts |
| LED Display Electrical Use (Estimated) | |
|---|---|
| Typical use (daytime): | 712 watts per side |
| Typical use (nighttime): | 142 watts per side |
| Maximum use: | 1,424 watts per side |
| Max draw: | 6 amps per side |
| Operating cost is approximately $37 per month per side, assuming the average of daytime and nighttime use and a price of $0.12 per kWh. | |
| LED Communication Methods |
|---|
| Cell Connect (optional) |
| Wi-Fi via Radio Frequency Modems (optional) |
| Ethernet Cable (standard) |
| LED Module Specifications | |
|---|---|
| Pixel size: | 40 x 40 pixels |
| Physical size: | 320mm x 320mm |
| LEDs per pixel: | 1 SMD |
| Text Capabilities |
|---|
| 25 rows of 2.2" text |
| 20 rows of 2.8" text |
| 18 rows of 3.1" text |
| 12 rows of 4.1" text |
| 11 rows of 5.7" text * |
| 10 rows of 6.3" text * |
| 9 rows of 7" text * |
| 8 rows of 7.9" text * |
| 7 rows of 9" text * |
| 6 rows of 10.5" text * |
| 5 rows of 12.6" text * |
| 4 rows of 15.7" text * |
| 3 rows of 21" text * |
| 2 rows of 31.5" text * |
| 1 row of 63" text * |
| * Using regular text. |
| Supported Formats |
|---|
| AVI, BMP, GIF, JPG, MOV, MP4, MPG, PNG, TIF, WMV |
