LED Display Specifications | |
---|---|
Color: | Full Color |
Pixel Pitch: | 20mm (0.79") |
Matrix - pixel height: | 80 |
Matrix - pixel width: | 96 |
Sides: | Double Sided |
Controller: | Industrial PC |
Total pixels: | 15,360 |
Total LEDs: | 46,080 |
Brightness: | Up to 10,000 nits |
Horizontal/vertical viewing angle: | 140/70 |
Software: | SignCommand.com |
Frames per second: | 60 |
Auto or manual dimming: | Included |

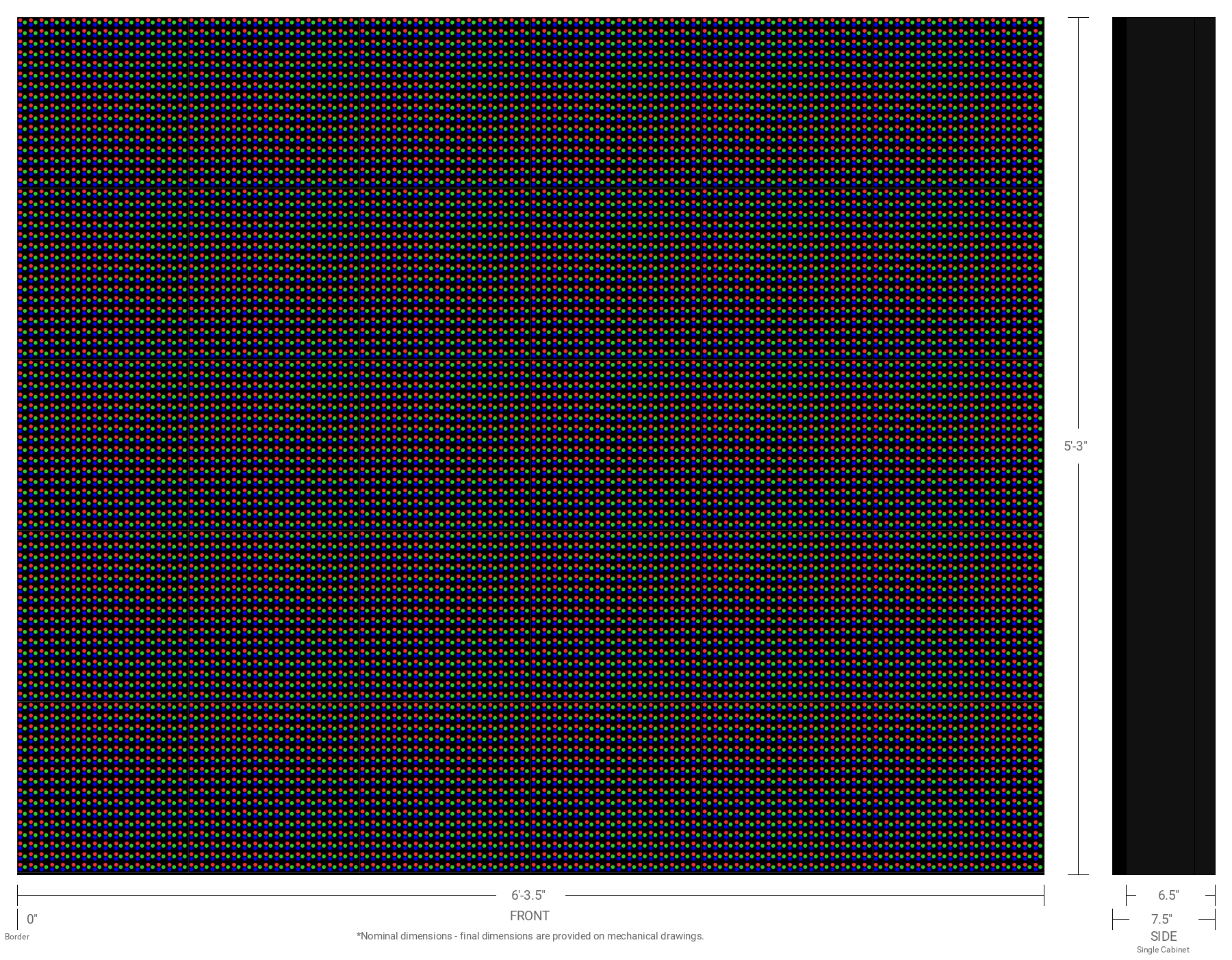

LED Display Dimensions | |
---|---|
Nominal dimensions - final dimensions are provided on mechanical drawings. | |
Active display height: | 5'-3" (63") |
Active display width: | 6'-3.5" (75.5") |
Active display sq.ft.: | 33 sq.ft. per side |
Matching Complete Sign |
---|
For applications with a combined LED display and identification area, we recommend the following complete sign. |
Complete Aurora 20mm 80x96 Double Sided Full Color LED Display with 3' x 7' ID Cabinet & Digital Print Pan Formed Faces |
Matching Identification Cabinet |
---|
For applications with a separate LED display and identification area, we recommend the following sized ID cabinet. |
3' x 7' Double Sided Aluminum Sign Cabinet with 12" Extrusion |
Electrical Requirements (Estimated) | |
---|---|
Circuit: | 1 circuit at 20 amps |
Voltage: | 240 volts |
LED Display Electrical Use (Estimated) | |
---|---|
Typical use (daytime): | 578 watts per side |
Typical use (nighttime): | 116 watts per side |
Maximum use: | 1,157 watts per side |
Max draw: | 5 amps per side |
Operating cost is approximately $30 per month per side, assuming the average of daytime and nighttime use and a price of $0.12 per kWh. |
LED Communication Methods |
---|
Cell Connect (optional) |
Wi-Fi via Radio Frequency Modems (optional) |
Ethernet Cable (standard) |
LED Module Specifications | |
---|---|
Pixel size: | 16 x 16 pixels |
Physical size: | 320mm x 320mm |
LEDs per pixel: | 1 red, 1 green, 1 blue |
Text Capabilities |
---|
10 rows of 5.5" text |
8 rows of 7.1" text |
7 rows of 7.9" text |
5 rows of 10.2" text |
4 rows of 15.7" text * |
3 rows of 21" text * |
2 rows of 31.5" text * |
1 row of 63" text * |
* Using regular text. |
Supported Formats |
---|
AVI, BMP, GIF, JPG, MOV, MP4, MPG, PNG, TIF, WMV |
