Aurora 20mm 32x64 Double Sided Full Color LED Display
View this model as a
complete sign.
| LED Display Specifications | |
|---|---|
| Color: | Full Color |
| Pixel Pitch: | 20mm (0.79") |
| Matrix - pixel height: | 32 |
| Matrix - pixel width: | 64 |
| Sides: | Double Sided |
| Controller: | Industrial PC |
| Total pixels: | 4,096 |
| Total LEDs: | 12,288 |
| Brightness: | Up to 10,000 nits |
| Horizontal/vertical viewing angle: | 140/70 |
| Software: | SignCommand.com |
| Frames per second: | 60 |
| Auto or manual dimming: | Included |

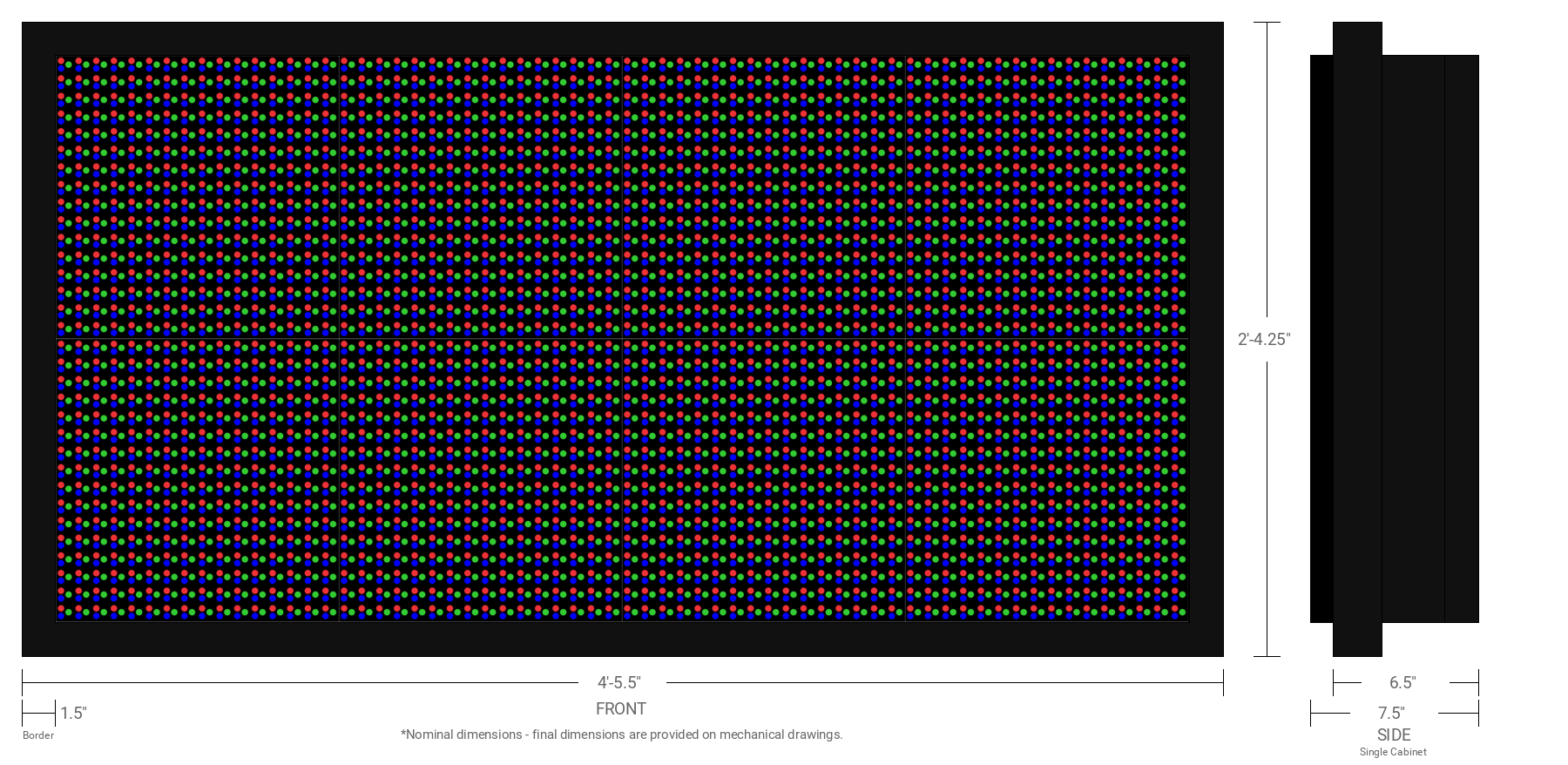

| LED Display Dimensions | |
|---|---|
| Nominal dimensions - final dimensions are provided on mechanical drawings. | |
| Active display height: | 2'-1.25" (25.25") |
| Active display width: | 4'-2.5" (50.5") |
| Active display sq.ft.: | 8.9 sq.ft. per side |
| Matching Complete Sign |
|---|
| For applications with a combined LED display and identification area, we recommend the following complete sign. |
| Complete Aurora 20mm 32x64 Double Sided Full Color LED Display with 2.5' x 6' ID Cabinet & Digital Print Pan Formed Faces |
| Matching Identification Cabinet |
|---|
| For applications with a separate LED display and identification area, we recommend the following sized ID cabinet. |
| 2.5' x 6' Double Sided Aluminum Sign Cabinet with 12" Extrusion |
| Electrical Requirements (Estimated) | |
|---|---|
| Circuit: | 1 circuit at 20 amps |
| Voltage: | 120 volts |
| LED Display Electrical Use (Estimated) | |
|---|---|
| Typical use (daytime): | 175 watts per side |
| Typical use (nighttime): | 35 watts per side |
| Maximum use: | 350 watts per side |
| Max draw: | 3 amps per side |
| Operating cost is approximately $9 per month per side, assuming the average of daytime and nighttime use and a price of $0.12 per kWh. | |
| LED Communication Methods |
|---|
| Cell Connect (optional) |
| Wi-Fi via Radio Frequency Modems (optional) |
| Ethernet Cable (standard) |
| LED Module Specifications | |
|---|---|
| Pixel size: | 16 x 16 pixels |
| Physical size: | 320mm x 320mm |
| LEDs per pixel: | 1 red, 1 green, 1 blue |
| Text Capabilities |
|---|
| 4 rows of 5.5" text |
| 3 rows of 7.1" text |
| 2 rows of 7.9" text |
| 2 rows of 10.2" text |
| 1 row of 25.2" text * |
| * Using regular text. |
| Supported Formats |
|---|
| AVI, BMP, GIF, JPG, MOV, MP4, MPG, PNG, TIF, WMV |
