LED Display Specifications | |
---|---|
Color: | Full Color |
Pixel Pitch: | 16mm (0.63") |
Matrix - pixel height: | 160 |
Matrix - pixel width: | 120 |
Sides: | Single Sided |
Controller: | Industrial PC |
Total pixels: | 19,200 |
Total LEDs: | 57,600 |
Brightness: | Up to 10,000 nits |
Horizontal/vertical viewing angle: | 140/70 |
Software: | SignCommand.com |
Frames per second: | 60 |
Auto or manual dimming: | Included |

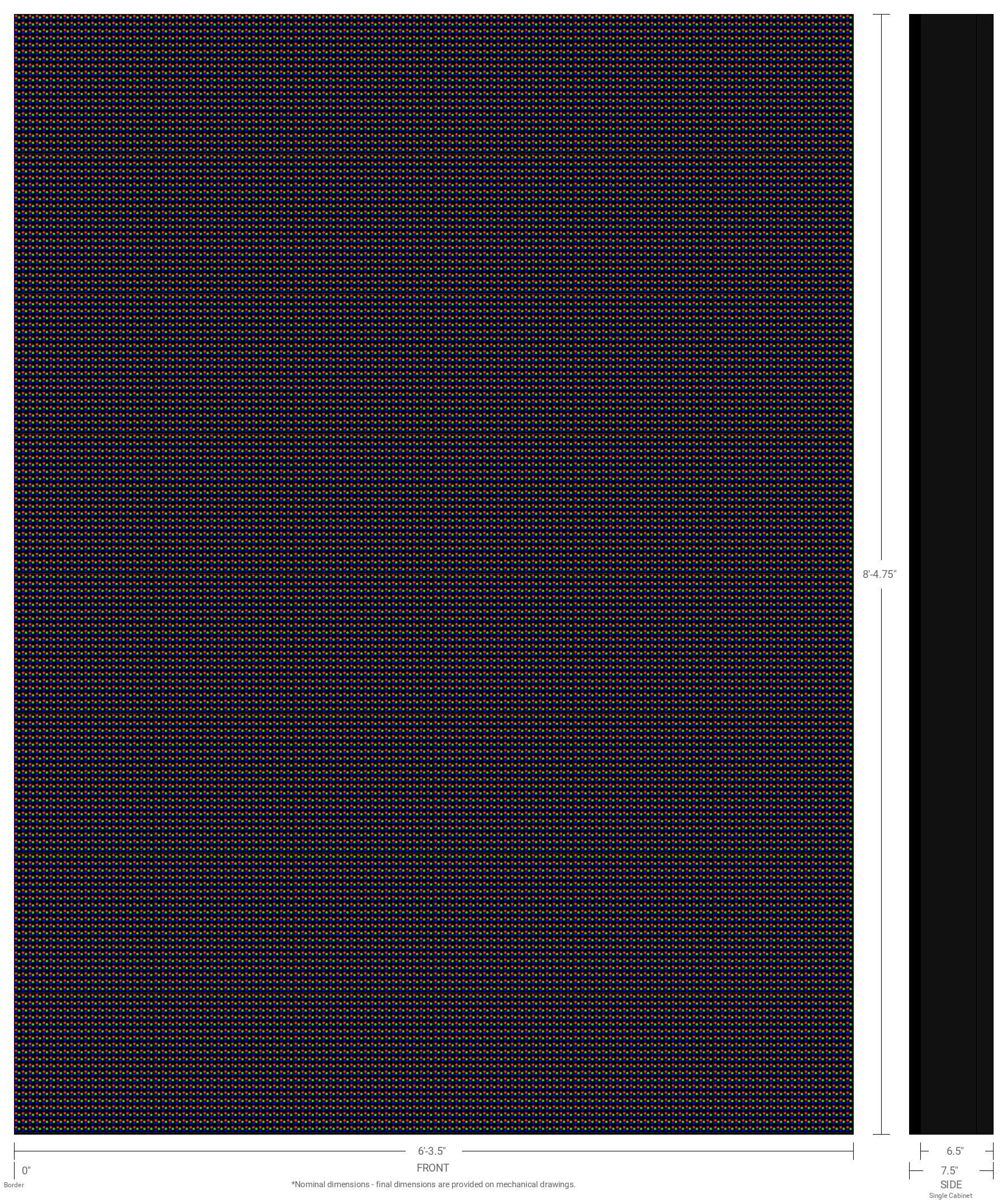

LED Display Dimensions | |
---|---|
Nominal dimensions - final dimensions are provided on mechanical drawings. | |
Active display height: | 8'-4.75" (100.75") |
Active display width: | 6'-3.5" (75.5") |
Active display sq.ft.: | 52.8 sq.ft. |
Matching Complete Sign |
---|
For applications with a combined LED display and identification area, we recommend the following complete sign. |
Complete Aurora 16mm 160x120 Single Sided Full Color LED Display with 3' x 7' ID Cabinet & Digital Print Pan Formed Face |
Matching Identification Cabinet |
---|
For applications with a separate LED display and identification area, we recommend the following sized ID cabinet. |
3' x 7' Single Sided Aluminum Sign Cabinet with 12" Extrusion |
Electrical Requirements (Estimated) | |
---|---|
Circuit: | 1 circuit at 20 amps |
Voltage: | 120 volts |
LED Display Electrical Use (Estimated) | |
---|---|
Typical use (daytime): | 878 watts |
Typical use (nighttime): | 176 watts |
Maximum use: | 1,756 watts |
Max draw: | 15 amps |
Operating cost is approximately $46 per month , assuming the average of daytime and nighttime use and a price of $0.12 per kWh. |
LED Communication Methods |
---|
Cell Connect (optional) |
Wi-Fi via Radio Frequency Modems (optional) |
Ethernet Cable (standard) |
LED Module Specifications | |
---|---|
Pixel size: | 20 x 20 pixels |
Physical size: | 320mm x 320mm |
LEDs per pixel: | 1 red, 1 green, 1 blue |
Text Capabilities |
---|
20 rows of 4.4" text |
16 rows of 5.7" text |
14 rows of 6.3" text |
10 rows of 8.2" text |
9 rows of 11.2" text * |
8 rows of 12.6" text * |
7 rows of 14.4" text * |
6 rows of 16.8" text * |
5 rows of 20.2" text * |
4 rows of 25.2" text * |
3 rows of 33.6" text * |
2 rows of 50.4" text * |
1 row of 100.8" text * |
* Using regular text. |
Supported Formats |
---|
AVI, BMP, GIF, JPG, MOV, MP4, MPG, PNG, TIF, WMV |
