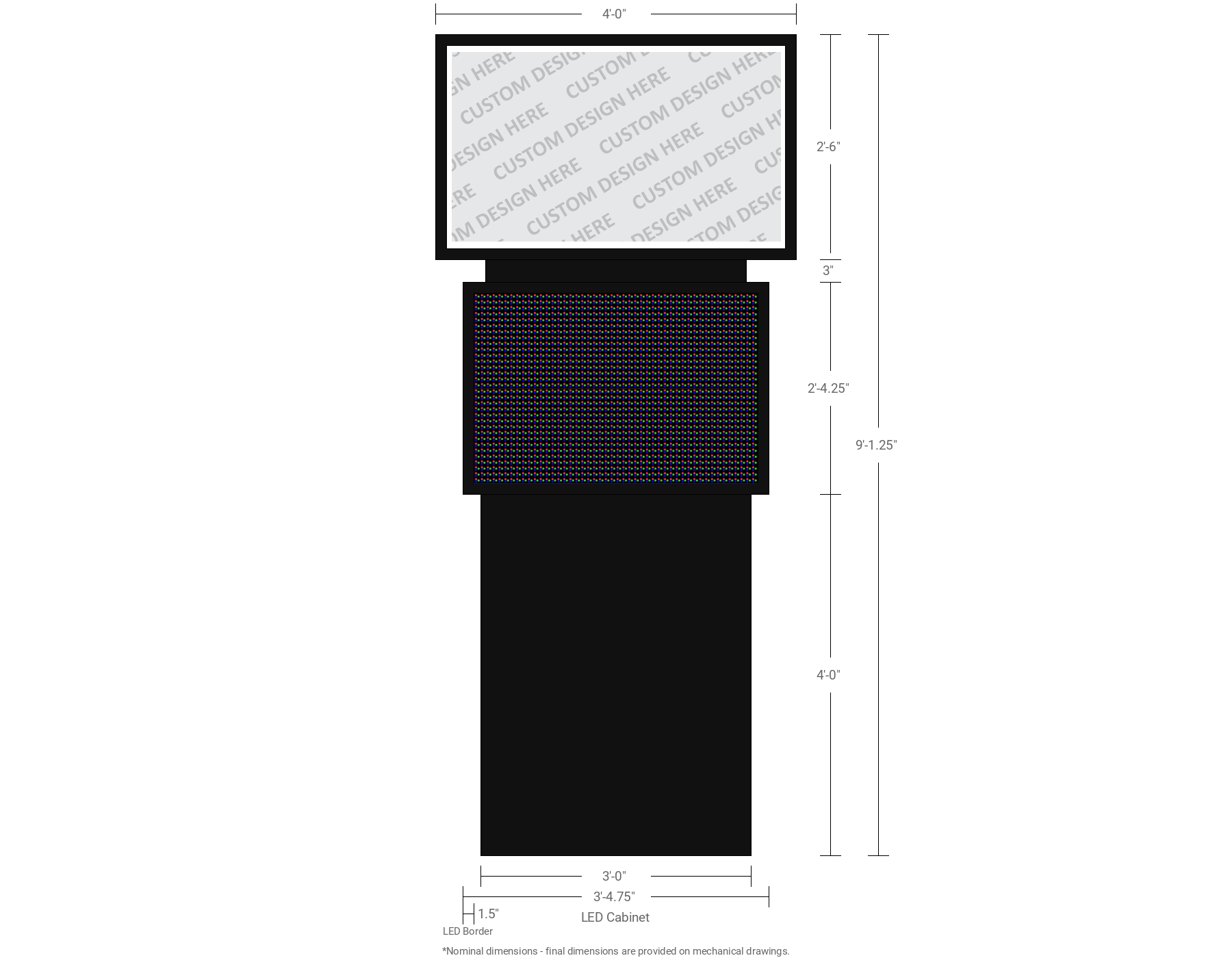

Complete Polaris 20mm 32x48 Single Sided Full Color LED Display with 2.5' x 4' ID Cabinet & Digital Print Pan Formed Face
Shown here with optional and customizable double thru pole with pole cover.
Multiple cabinet colors are available.
Multiple cabinet colors are available.
LED Display
| LED Display Specifications | |
|---|---|
| Color: | Full Color |
| Pixel Pitch: | 20mm (0.79") |
| Matrix - pixel height: | 32 |
| Matrix - pixel width: | 48 |
| Sides: | Single Sided |
| Controller: | Industrial PC |
| Total pixels: | 1,536 |
| Total LEDs: | 4,608 |
| Brightness: | Up to 10,000 nits |
| Horizontal/vertical viewing angle: | 140/70 |
| Software: | SignCommand.com |
| Frames per second: | 60 |
| Auto or manual dimming: | Included |
| LED Display Dimensions | |
|---|---|
| Nominal dimensions - final dimensions are provided on mechanical drawings. | |
| Active display height: | 2'-1.25" (25.25") |
| Active display width: | 3'-1.75" (37.75") |
| Active display sq.ft.: | 6.6 sq.ft. |
| LED Display Electrical Use (Estimated) | |
|---|---|
| Typical use (daytime): | 145 watts |
| Typical use (nighttime): | 29 watts |
| Maximum use: | 289 watts |
| Max draw: | 2 amps |
| Operating cost is approximately $8 per month , assuming the average of daytime and nighttime use and a price of $0.12 per kWh. | |
| LED Communication Methods |
|---|
| Cell Connect (optional) |
| Wi-Fi via Radio Frequency Modems (optional) |
| Ethernet Cable (standard) |
| LED Module Specifications | |
|---|---|
| Pixel size: | 16 x 16 pixels |
| Physical size: | 320mm x 320mm |
| LEDs per pixel: | 1 red, 1 green, 1 blue |
| Text Capabilities |
|---|
| 4 rows of 5.5" text |
| 3 rows of 7.1" text |
| 2 rows of 7.9" text |
| 2 rows of 10.2" text |
| 1 row of 25.2" text * |
| * Using regular text. |
| Supported Formats |
|---|
| AVI, BMP, GIF, JPG, MOV, MP4, MPG, PNG, TIF, WMV |
ID Cabinet & Face
| Cabinet Specifications |
|---|
| All-aluminum extrusion |
| Single-sided with aluminum back |
| Mitered and weld-reinforced corners |
| Available in several colors |
| Available with LED or fluorescent illumination, or non-illuminated. |
| Cabinet Dimensions | |
|---|---|
| Cabinet Height: | 30" |
| Cabinet Width: | 48" |
| Cabinet Depth: | 12" |
| Face Specifications |
|---|
| Single Pan Formed Sign Face |
| Digitally printed graphics |
| TUFFAK® SL Sign Grade Polycarbonate |
| .118" material thickness |
| 12,500psi compressive strength |
| High velocity hurricane zone classified |
| Face Dimensions | |
|---|---|
| Face Height: | 29.25" |
| Face Width: | 47.75" |
| Face Sq. Ft.: | 9.7 sq.ft. |
| Pan Depth: | 1.5" |
| Flange Size: | 1.5" |
Mounting & Electrical
Shown here with standard options. Different installation methods and custom dimensions are available.
| Mounting Specifications | |
|---|---|
| Type: | Double Thru Pole with Pole Cover |
| Mounting Dimensions | |
|---|---|
| Height: | 48" |
| Width: | 36" |
| Electrical Requirements (Estimated) | |
|---|---|
| Circuit: | 1 circuit at 20 amps |
| Voltage: | 120 volts |
