LED Display Specifications | |
---|---|
Color: | Full Color |
Pixel Pitch: | 10mm (0.39") |
Matrix - pixel height: | 96 |
Matrix - pixel width: | 192 |
Sides: | Single Sided |
Controller: | Industrial PC |
Total pixels: | 18,432 |
Total LEDs: | 55,296 |
Brightness: | Up to 10,000 nits |
Horizontal/vertical viewing angle: | 140/70 |
Software: | SignCommand.com |
Frames per second: | 60 |
Auto or manual dimming: | Included |
LED Display Dimensions | |
---|---|
Nominal dimensions - final dimensions are provided on mechanical drawings. | |
Active display height: | 3'-1.75" (37.75") |
Active display width: | 6'-3.5" (75.5") |
Active display sq.ft.: | 19.8 sq.ft. |
LED Display Electrical Use (Estimated) | |
---|---|
Typical use (daytime): | 356 watts |
Typical use (nighttime): | 71 watts |
Maximum use: | 713 watts |
Max draw: | 6 amps |
Operating cost is approximately $19 per month , assuming the average of daytime and nighttime use and a price of $0.12 per kWh. |
LED Communication Methods |
---|
Cell Connect (optional) |
Wi-Fi via Radio Frequency Modems (optional) |
Ethernet Cable (standard) |
LED Module Specifications | |
---|---|
Pixel size: | 32 x 32 pixels |
Physical size: | 320mm x 320mm |
LEDs per pixel: | 1 red, 1 green, 1 blue |
Text Capabilities |
---|
12 rows of 2.8" text |
9 rows of 3.5" text |
8 rows of 3.9" text |
6 rows of 5.1" text |
5 rows of 7.6" text * |
4 rows of 9.4" text * |
3 rows of 12.6" text * |
2 rows of 18.9" text * |
1 row of 37.8" text * |
* Using regular text. |
Supported Formats |
---|
AVI, BMP, GIF, JPG, MOV, MP4, MPG, PNG, TIF, WMV |
Cabinet Specifications |
---|
All-aluminum extrusion |
Single-sided with aluminum back |
Mitered and weld-reinforced corners |
Available in several colors |
Available with LED or fluorescent illumination, or non-illuminated. |
Cabinet Dimensions | |
---|---|
Cabinet Height: | 36" |
Cabinet Width: | 84" |
Cabinet Depth: | 12" |
Face Specifications |
---|
Single Pan Formed Sign Face |
Digitally printed graphics |
TUFFAK® SL Sign Grade Polycarbonate |
.118" material thickness |
12,500psi compressive strength |
High velocity hurricane zone classified |
Face Dimensions | |
---|---|
Face Height: | 35.25" |
Face Width: | 83.75" |
Face Sq. Ft.: | 20.5 sq.ft. |
Pan Depth: | 1.5" |
Flange Size: | 1.5" |

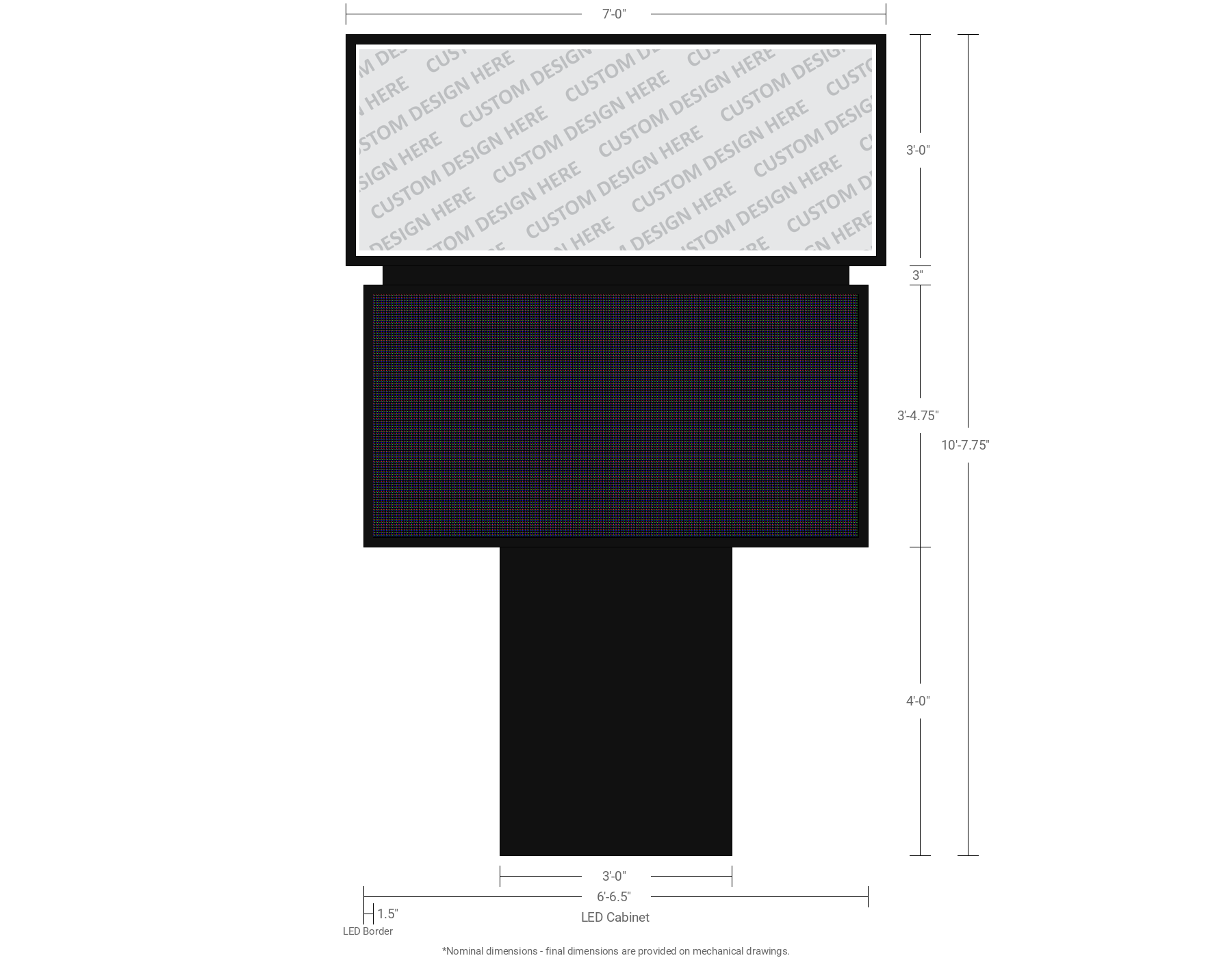

Shown here with standard options. Different installation methods and custom dimensions are available.
Mounting Specifications | |
---|---|
Type: | Double Thru Pole with Pole Cover |
Mounting Dimensions | |
---|---|
Height: | 48" |
Width: | 36" |
Electrical Requirements (Estimated) | |
---|---|
Circuit: | 1 circuit at 20 amps |
Voltage: | 120 volts |
