LED Display Specifications | |
---|---|
Color: | Full Color |
Pixel Pitch: | 10mm (0.39") |
Matrix - pixel height: | 128 |
Matrix - pixel width: | 160 |
Sides: | Double Sided |
Controller: | Industrial PC |
Total pixels: | 40,960 |
Total LEDs: | 122,880 |
Brightness: | Up to 10,000 nits |
Horizontal/vertical viewing angle: | 140/70 |
Software: | SignCommand.com |
Frames per second: | 60 |
Auto or manual dimming: | Included |
LED Display Dimensions | |
---|---|
Nominal dimensions - final dimensions are provided on mechanical drawings. | |
Active display height: | 4'-2.5" (50.5") |
Active display width: | 5'-3" (63") |
Active display sq.ft.: | 22.1 sq.ft. per side |
LED Display Electrical Use (Estimated) | |
---|---|
Typical use (daytime): | 390 watts per side |
Typical use (nighttime): | 78 watts per side |
Maximum use: | 780 watts per side |
Max draw: | 7 amps per side |
Operating cost is approximately $21 per month per side, assuming the average of daytime and nighttime use and a price of $0.12 per kWh. |
LED Communication Methods |
---|
Cell Connect (optional) |
Wi-Fi via Radio Frequency Modems (optional) |
Ethernet Cable (standard) |
LED Module Specifications | |
---|---|
Pixel size: | 32 x 32 pixels |
Physical size: | 320mm x 320mm |
LEDs per pixel: | 1 red, 1 green, 1 blue |
Text Capabilities |
---|
16 rows of 2.8" text |
12 rows of 3.5" text |
11 rows of 3.9" text |
8 rows of 5.1" text |
7 rows of 7.2" text * |
6 rows of 8.4" text * |
5 rows of 10.1" text * |
4 rows of 12.6" text * |
3 rows of 16.8" text * |
2 rows of 25.2" text * |
1 row of 50.4" text * |
* Using regular text. |
Supported Formats |
---|
AVI, BMP, GIF, JPG, MOV, MP4, MPG, PNG, TIF, WMV |
Cabinet Specifications |
---|
All-aluminum extrusion |
Double-sided application |
Mitered and weld-reinforced corners |
Available in several colors |
Available with LED or fluorescent illumination, or non-illuminated. |
Cabinet Dimensions | |
---|---|
Cabinet Height: | 36" |
Cabinet Width: | 72" |
Cabinet Depth: | 12" |
Face Specifications |
---|
Two Pan Formed Sign Faces |
Digitally printed graphics |
TUFFAK® SL Sign Grade Polycarbonate |
.118" material thickness |
12,500psi compressive strength |
High velocity hurricane zone classified |
Face Dimensions | |
---|---|
Face Height: | 35.25" |
Face Width: | 71.75" |
Face Sq. Ft.: | 17.6 sq.ft. |
Pan Depth: | 1.5" |
Flange Size: | 1.5" |

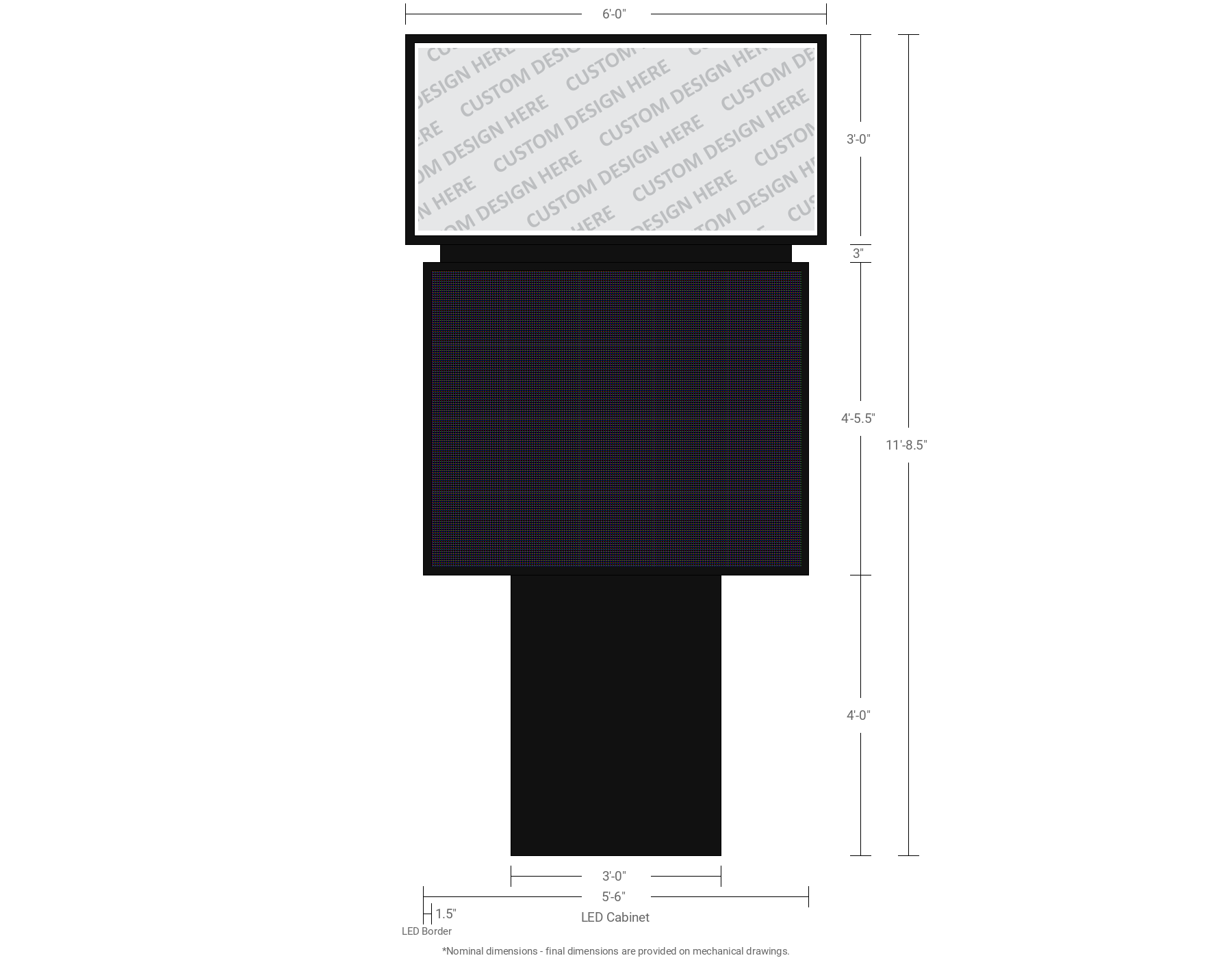

Shown here with standard options. Different installation methods and custom dimensions are available.
Mounting Specifications | |
---|---|
Type: | Double Thru Pole with Pole Cover |
Mounting Dimensions | |
---|---|
Height: | 48" |
Width: | 36" |
Electrical Requirements (Estimated) | |
---|---|
Circuit: | 1 circuit at 20 amps |
Voltage: | 120 volts |
