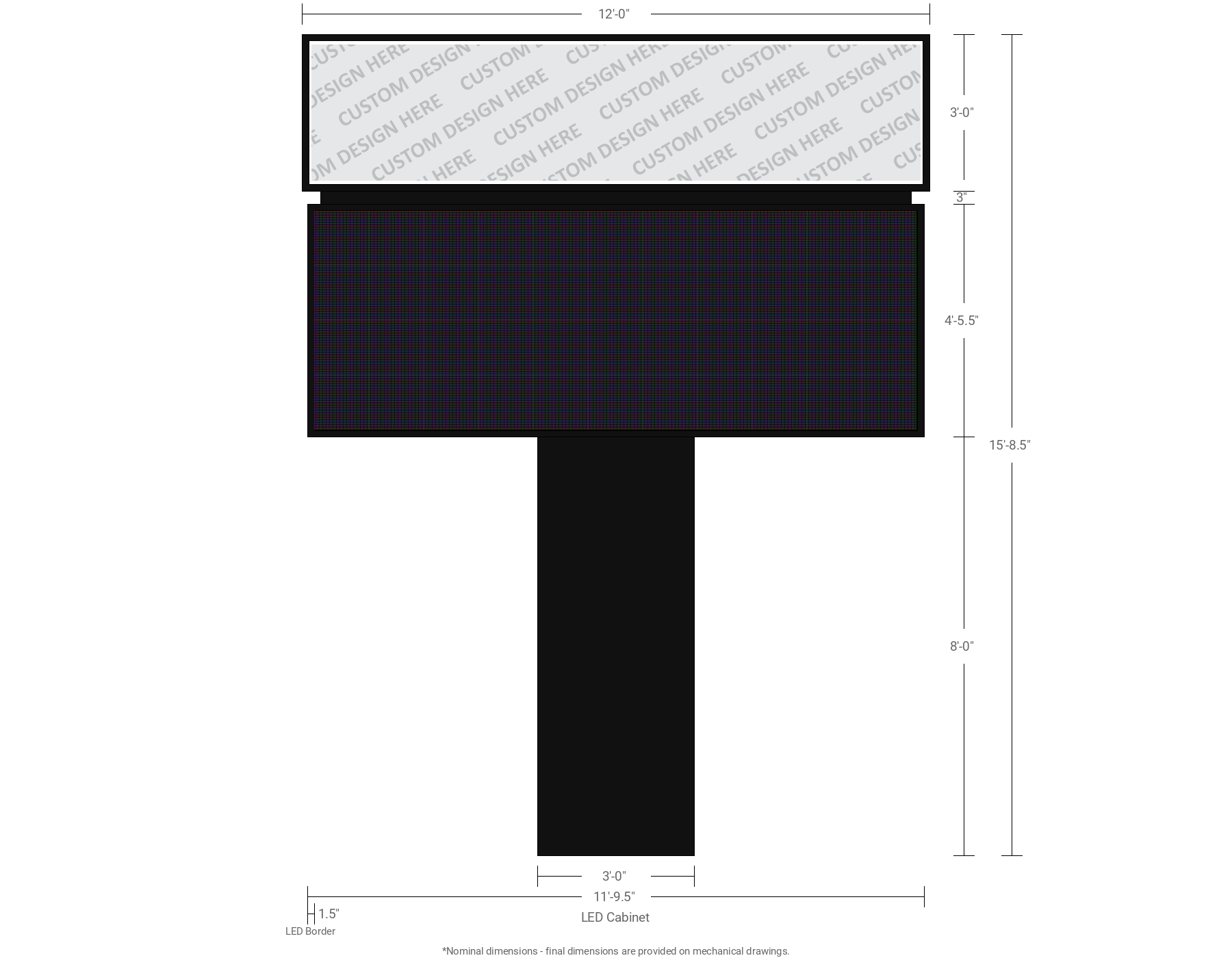

Complete Aurora 10mm 128x352 Single Sided Full Color LED Display with 3' x 12' ID Cabinet & Digital Print Pan Formed Face
Shown here with optional and customizable double thru pole with pole cover.
Multiple cabinet colors are available.
Multiple cabinet colors are available.
LED Display
| LED Display Specifications | |
|---|---|
| Color: | Full Color |
| Pixel Pitch: | 10mm (0.39") |
| Matrix - pixel height: | 128 |
| Matrix - pixel width: | 352 |
| Sides: | Single Sided |
| Controller: | Industrial PC |
| Total pixels: | 45,056 |
| Total LEDs: | 135,168 |
| Brightness: | Up to 10,000 nits |
| Horizontal/vertical viewing angle: | 140/70 |
| Software: | SignCommand.com |
| Frames per second: | 60 |
| Auto or manual dimming: | Included |
| LED Display Dimensions | |
|---|---|
| Nominal dimensions - final dimensions are provided on mechanical drawings. | |
| Active display height: | 4'-2.5" (50.5") |
| Active display width: | 11'-6.5" (138.5") |
| Active display sq.ft.: | 48.6 sq.ft. |
| LED Display Electrical Use (Estimated) | |
|---|---|
| Typical use (daytime): | 751 watts |
| Typical use (nighttime): | 150 watts |
| Maximum use: | 1,501 watts |
| Max draw: | 13 amps |
| Operating cost is approximately $39 per month , assuming the average of daytime and nighttime use and a price of $0.12 per kWh. | |
| LED Communication Methods |
|---|
| Cell Connect (optional) |
| Wi-Fi via Radio Frequency Modems (optional) |
| Ethernet Cable (standard) |
| LED Module Specifications | |
|---|---|
| Pixel size: | 32 x 32 pixels |
| Physical size: | 320mm x 320mm |
| LEDs per pixel: | 1 red, 1 green, 1 blue |
| Text Capabilities |
|---|
| 16 rows of 2.8" text |
| 12 rows of 3.5" text |
| 11 rows of 3.9" text |
| 8 rows of 5.1" text |
| 7 rows of 7.2" text * |
| 6 rows of 8.4" text * |
| 5 rows of 10.1" text * |
| 4 rows of 12.6" text * |
| 3 rows of 16.8" text * |
| 2 rows of 25.2" text * |
| 1 row of 50.4" text * |
| * Using regular text. |
| Supported Formats |
|---|
| AVI, BMP, GIF, JPG, MOV, MP4, MPG, PNG, TIF, WMV |
ID Cabinet & Face
| Cabinet Specifications |
|---|
| All-aluminum extrusion |
| Single-sided with aluminum back |
| Mitered and weld-reinforced corners |
| Available in several colors |
| Available with LED or fluorescent illumination, or non-illuminated. |
| Cabinet Dimensions | |
|---|---|
| Cabinet Height: | 36" |
| Cabinet Width: | 144" |
| Cabinet Depth: | 12" |
| Face Specifications |
|---|
| Single Pan Formed Sign Face |
| Digitally printed graphics |
| TUFFAK® SL Sign Grade Polycarbonate |
| .118" material thickness |
| 12,500psi compressive strength |
| High velocity hurricane zone classified |
| Face Dimensions | |
|---|---|
| Face Height: | 35.25" |
| Face Width: | 143.75" |
| Face Sq. Ft.: | 35.2 sq.ft. |
| Pan Depth: | 1.5" |
| Flange Size: | 1.5" |
Mounting & Electrical
Shown here with standard options. Different installation methods and custom dimensions are available.
| Mounting Specifications | |
|---|---|
| Type: | Double Thru Pole with Pole Cover |
| Mounting Dimensions | |
|---|---|
| Height: | 96" |
| Width: | 36" |
| Electrical Requirements (Estimated) | |
|---|---|
| Circuit: | 1 circuit at 20 amps |
| Voltage: | 120 volts |
